CUBE CARE Panel System

Cubicle Curtain Panel System

Cube Care Panel System For Healthcare Facilities

The Cube Care Panel System is a way of providing a house-wide standardization system that can save your facility time, money, and storage space…to name a few!

Once a fabric has been selected for your facility, this curtain panel system uses a series of identical curtain panels of the same width and length. When they are installed on the track the curtains are overlapped at the grommets by 6”. Panels are then added to your track until you have full coverage to ensure

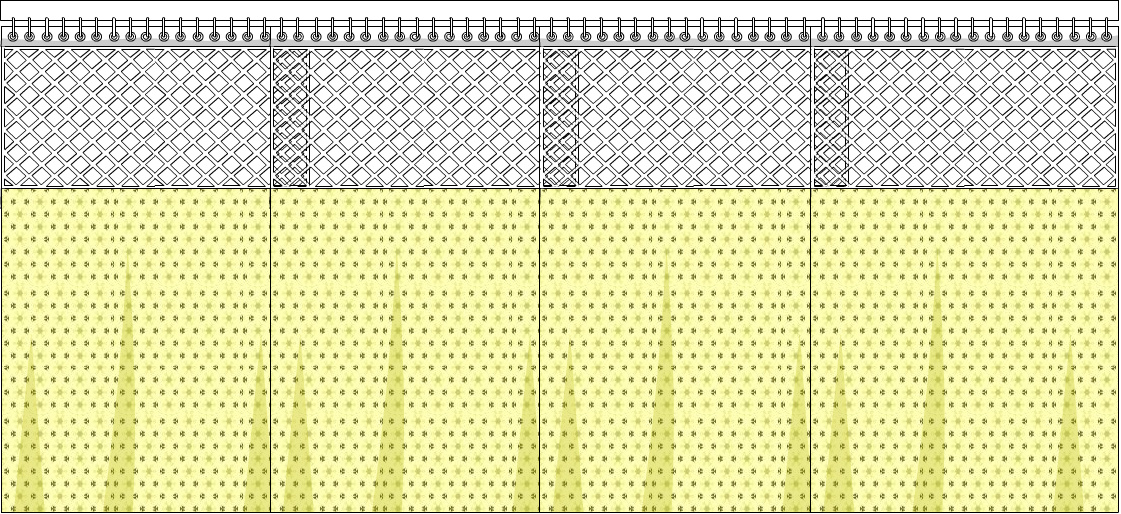

“Cubicle Curtain Panel System installed on track”

Cube Care cubicle curtain panel system installed on a track. The curtain panels on a Cube Care Panel System come in two different widths, 72” and 90”, and this is solely determined by the fabric that is used. There are two basic types of fabric, Railroaded and Non-Railroaded (or “Up the Roll”). For Railroaded fabrics a 90” panel width is used. For “Up the Roll” fabrics the panel width is 72”. This is because the way the pattern is oriented on the bolt of fabric limits the size for fabrication.

**Please see our FAQ’s for more information on how to determine your hospital curtain length.**

The length of your panels can be made to your exact needs and is determined by your ceiling height and the distance off the floor that is required by your facility. Each facility has a different requirement for how far off the floor curtains have to be, however we typically see between 10-12” off the floor. This is so that the curtains don’t interfere with cleaning floors and so they don’t get dirty or caught on equipment wheels.

Please contact us if you would like assistance developing a standardization system for your facility. We can help you account for different length requirements, specialty wards, and other special circumstances, while still getting the full benefits from a Panel System.

Simple solutions by CUBE CARE COMPANY

Modular Paneling System

If these are the complaint you have

  1. Curtains not matching the rest of the rooms.
  2. Curtains are dragging on the floor.
  3. Curtains are too short with little or no patient privacy.
  4. Curtains are not wide enough to give the patient full privacy.
  5. Not enough spare curtains were purchased for that unit.
  6. Too many spares of different colors and sizes even within the same color how do I know which one to choose? A true maintenance nightmare.
  • Solution:
  • “ CUBE CARE PANEL SYSTEM”
  • A house wide standardization of one size one color thought-out the facility.

Benefits of a CUBE CARE PANEL SYSTEM:

SAVINGS in productivity, labor, time, storage space, maintenance cost, Ease of use, Aesthetics of unit, and Patient satisfaction just to name a few.

STANDARD CURTAINS VS CUBE CARE PANEL SYSTEM

Requesting maintenance of Standard Curtains will require the following steps:

if associate does not find an exact match.

This process is costly, tedious labor intensive and can take at least one hour to a week depending if you find a perfect match on your original search or not.

  1. Housekeeping receives a service request for changing out a soiled curtain.
  2. An associate is sent to the location to identify the pattern, color and size of the curtain that needs replacing.
  3. Associate now goes to clean curtain holding area in search for an exact match. Assuming they find an exact match.
  4. Associate proceeds to remove soiled curtain.
  5. Associate then installs an exact match clean curtain.
  6. A mismatching curtain is installed and the soiled curtain sent out for cleaning
  7. Whenever the curtain comes back the spare/loaner must be removed.
  8. The clean proprietary curtain to this location finally installed.
  9. The spare/loaner must be washed to avoid cross contamination.

Unit Routine Maintenance for Standard Cubicle Curtains :

  • 1. Soiled curtains are removed.
  • 2. Spares/loaners hanged in place until soiled curtain are cleaned and pressed.
  • 3. Removal of spares/loaners.
  • 4. Installation of originally removed curtains.

Request for maintenance and routine maintenance of CUBE CARE PANEL SYSTEM:

Whether a service request or routine maintenance. View our cubicle curtains maintenance video.

  • 1. Soiled curtains are removed.
  • 2. Spares/loaners hanged in place until soiled curtain are cleaned and pressed.
  • 3. Removal of spares/loaners.
  • 4. Installation of originally removed curtains.

Please visit our Textile gallery and select Cubicle Curtains to see the largest selection of cubicle/privacy curtains available.

Cube Care has the largest selection of cubicle curtain fabrics currently available in the industry. We have a constant commitment to bringing fresh, bold, and inspiring textiles every season. With the latest collections you are sure to find something that will fit your space, your décor, and provide an adequate amount of privacy at the same time.

Please visit our Textile Search feature on our website allows you to search through many of the fabrics that are available. Whether you would like to search by cost, by colors, or by patterns, it is a great tool to help you navigate the many options available.

It is also good to remind you can request samples directly from our website. All samples will arrive free of charge so you can always get a perfect match.

No matter which Cubicle Curtain style or system you decide to go with, we also offer additional details that can be added to make your cubicle curtains unique and specially tailored to your facility. Here are some of those options:

Privacy Curtain Specifications

Below are some of the fabrication details on all of our classic curtains:

  • • Double-fold, built in Mesh Header
  • • Rust-proof Grommets spaced every 6”
  • • 1” Double-stitched bottom and side hems
  • • Seamless construction for railroaded (“off the roll”) fabrics/patterns
  • • French folds for non-railroaded curtains (“up the roll” patterns)

Anti-Microbial Treatments

Cube Care Company is pleased to offer the latest in anti-microbial treatments with our program, “Constant Care”. We use Aegis anti-microbial technology to protect our cubicle curtains against mold, fungi, algae, and most harmful bacteria. This, in turn protects you and your patients, helping to reduce exposure to hospital-acquired infections. Unlike some other treatments, our treatment uses no toxic chemicals, is non-leaching, non-depleting, won’t create “Superbugs”, and is EPA registered.With our Constant Care program, not only can we treat your brand new cubicle curtains, but we can also treat curtains that you currently have hanging in your facility. Just send them to us, and we will send back your clean and Anti-Microbial treated curtains.

In addition to cubicle curtains our service can be extended to new draperies, cart covers, and even window treatments! Give us a call today to discuss pricing and details.

Framed or Unframed

Framed Style Cubicle Curtains

This option is applied to the mesh of a curtain to give it a nice “framed” look as well as added reinforcement. Fabric matching the body of the curtain is taken and is placed in a 1 ½” border around the top and sizes of the mesh.

Standard Mesh on Cubicle Curtains (Unframed)

Mesh Color Options

Buff

White

Tie Backs

Tie backs can be used to hold a hospital curtain back when not in use. We have two options available: Curtain tie back or Fabric tie back.

♦ Curtain tie back: Extruded PVC (Plastic)

♦ Fabric tie back available in the same or complimentary fabric as the curtain. Includes 3/4″ white velcro on each end.

Curtain Tie Back

Fabric Tie Back

Timestrip

Timestrip Time Indicators offer a helpful visual reminder of service and maintenance schedules for consumable components.

♦ 19mm x 40mm in size

♦ 3 Month / 6 Month run-out window

♦ Activation blister on top

♦ For room temperature use only

Timestrip 3 Month

Timestrip 6 Month

Not All Curtains are Created Equal

Cube Care Manufacturing Specifications

Every manufacturer has slightly different specifications for their cubicle curtains. The following are the specifications that we use the construction of our hems:

  • Mesh Header – 1 ½” wide, double thick and double lock stitched
  • Top Fabric Hem/Mesh Footer – Double thick and double lock stitched to mesh with a 5/8” wide seam
  • Bottom Hem – 1 ¼” wide double thick and double stitched
  • Side Hems – 1 ¼” wide double thick and double stitched
  • Vertical Seams – ½” wide double thick and double stitched French Folds. (Many companies use sergers to unite panels. This leads to UGLY AND UNFINISHED QUALITY.

All hems and seams are sewn with 100% mercerized polyester core thread.

Note: The way that our mesh is attached to the fabric portion differs from that of our competitors. Often you will other cubicle curtains with the mesh sewn directly on top of the fabric. We make sure that they are first sewn together, then double stitched on top of that to create a stable and durable seam.

Questions are good answers are BETTER !

1. Q: How does the Cube Care Panel System compare with the other curtains systems

A: Please see the chart below to compare your different system options.

2. Q: I don’t like how the mesh looks at the top of the curtains. Do I really need it?

A:You don’t always need mesh on your cubicle curtains, but if you have a sprinkler system in the area where they are located, or if a curtain would obstruct an exit sign once it is in place, then mesh IS required. These requirements are set to comply with the NFPA 13 Standard.

3. Q: Will all polyester fabrics meet the fire codes I need for my facility?

A: Not all fabrics meet the code, however at Cube Care we will ONLY manufacture your cubicle curtains with fabrics that meet the requirements of NFPA 701. These fabrics are inherently flame resistant, which means that these properties are built-in and won’t wash out or wear out. Your curtains will also be labeled as having met the NFPA 701 requirements.

4. Q: Are all of your cubicle curtains anti-microbial?

A: Not all of our cubicle curtains are anti-microbial. Some of the fabrics we carry come standard with anti-microbial properties, and for those that do not we have the Constant Care program in which we can treat them for you. If you are unsure, please contact us and we will check if your fabric selection comes standard with anti-microbial properties.

5. Q: What is the lead time for your cubicle curtains?

A: Our standard lead time is 2-3 weeks if the fabric is readily available from the manufacturer. Please contact us to verify if there is an additional lead time for the fabric you have selected.

6. Q: Do you have any ready-made hospital curtains that I can purchase?

A: All of our orders are made-to-order, however sometimes we do have overstock in our warehouse in limited quantities and sizes. Please contact us directly for availability.

7. Q: Will my hospital curtain order come with track or carriers (hooks)?

A: If your project requires track or accessories they will need to be purchased separately. Please check our Cubicle Curtain Tracks section for more information.

8. Q:How far apart are the grommets placed on a cubicle curtain?

A: Grommets are placed every 6” on center.

Example: Ceiling height is 9 feet (108”) and distance above the floor is 12”.
108” – 12” – 2” = 94” Finished Curtain Length.

9. Q:How wide does my curtain need to be?

A: Before you determine the width of your curtain you need to know the size of the track it will be going on. We typically add at least 10% (or a minimum of 12”) to the length of the track to account for fullness (which will ensure privacy), and that is the width of your curtain.

10. Q:Can I wash my cubicle curtains?

A: Yes, all of our cubicle curtains are washable to 160 degrees F. The flame resistance will not wash out since it is inherent to the fabric material. Each curtain will also have a label that lets you keep track of the last time a curtain was cleaned.

11. Q: I am not affiliated with a hospital. Can I still purchase cubicle curtains from you?

A: Of course! Cubicle curtains aren’t limited to just hospitals. Many clinics, spas, shopping centers, and even private homes have found uses for cubicle curtains. Since all of our curtains are made to order they can easily be tailored to your individual needs

12. Q: I’d like to see the fabric before ordering. How can I get a sample of your curtains?

A: Samples of our fabrics can be ordered directly online. You can browse using our Textile Search feature, and once you find a fabric you like you can add it to your cart and check out. All samples will be sent to you FREE of charge!

13. Q: What does the term “Railroaded” mean?

A:When a fabric is “Railroaded” it means that the pattern runs across the roll, from selvage (the self-finished edge of the fabric) to selvage. For the manufacturing of Cubicle Curtains or Privacy Curtains a “Railroaded” fabric pattern can be used directly off the roll and the mesh is attached along the selvage. This allows you to have a seamless curtain of almost any width!

Off the Roll Pattern with Mesh

14. Q: Is there a maximum size I can have for a hospital curtain with a Railroaded fabric?

A: When using a Railroaded fabric, the maximum length of your hospital curtain is determined by the mesh size you select. The fabric width will typically be 72”, therefore by changing the mesh size from 20” to 28” you can increase the length of your curtain.

15. Q: What does the term “Non-railroaded” mean?

A: When a fabric is “Non-Railroaded” this means that the pattern runs upthe roll, parallel to the selvage. When manufacturing Cubicle Curtains with a “Non-Railroaded” or “Up the Roll” fabric we have to first find the repeat of the pattern, and cut along that point.

We are left with a series of panels which are rotated and lined up to match the pattern. They are sewn together to give the appearance of being continuous. The number of panels that we use will depend on the total width required for your curtain.

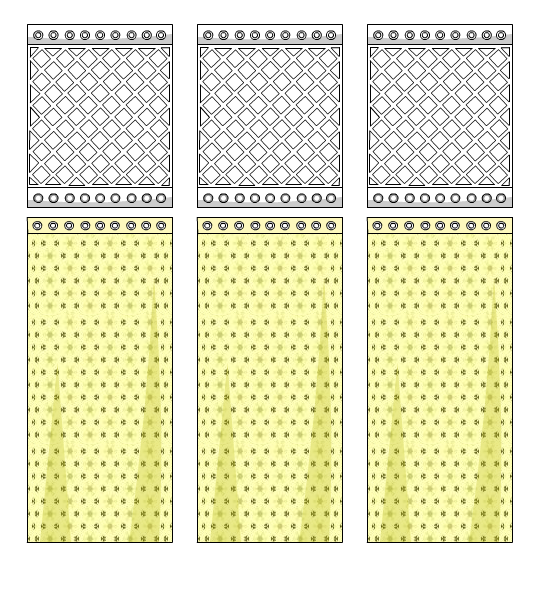

Privacy Curtain made with Non-railroaded fabric (3 panels)

16. Q: You mentioned the term “repeat”. What does “repeat” mean?

A: When dealing with fabrics, a “repeat” refers to the distance between an image or pattern on the fabric before it is repeated again. This is more important for “Non-railroaded” patterns. We always make sure that our repeats are matched so even though your curtain has a seam running vertically, it appears that the pattern is uninterrupted.

17. Q: Is there a maximum size I can have for a hospital curtain with a Non-Railroaded fabric?

A: When using a Non-Railroaded fabric you are not as limited in length as with railroaded fabrics because the pattern goes up the roll and will continue to repeat itself. The width is not limited either, because multiple widths of fabric can be sewn together to create the width you need.

18. Q: I have many different size tracks?

A: The CUBE CARE PANELS will be added as needed to the track until full enclosure is achieved.

19. Q: We have different decors in our hospital??

A: Select a neutral pattern, there are many patterns and colors to choose from

20. Q: We have several different ceiling heights?

A: We suggest two size length maximum, to differentiate the sizes you may select a different color mesh (netting) color or a different color (body) for the curtain. we can also add a twill tape for easy referencing.

21. Q: Can I keep standard cubicle curtain special areas such as Pediatrics?

A: Absolutely, however we suggest that pattern selected for this area still share the characteristics of keeping a single size.

22. Q: How will I know what size to purchase?

A: Call us, we will visit your facility and help you determine the best size to suits your needs.

23. Q: Is this going to be expensive?

A: Depends on the fabric that is chosen.But even using the designer fabrics, you will obtain immediate savings.

24. Q: Do I have to purchase all of this curtains at once?

A: No, it can be done gradually. We are happy to work with you on this, until all the participating units on the program get the curtains.

25. Q: Are there any other local hospitals currently using this system that I can visit?

A: Yes, there are quite a few, here are just some of the hospitals that we have manufactured and enjoy the simplicity of the CUBE CARE PANEL SYSTEM:

  • • Mt. Sinai Medical Center.
  • • Delray Medical Center.
  • • Pinecrest Rehabilitation Hospital.
  • • Palm Beach Gardens Medical Center.
  • • Memorial Hospital Miramar.
  • • Memorial Regional Hospital.
  • • Joe DiMaggio Children’s Hospital.
  • • Cleveland Clinic.
  • • Homestead Hospital.
  • • Baptist hospital
  • • South Miami Hospital

26. Q: What is cut vs. finished width?

A: Cut width is the width that is stated for the cubilce curtain. The finished width is always narrower to allow for the hemming and seaming of the material. This is usually not an issue if adequate fullness is added to the track measurement. If you need a specific width you must state it as “finished width” and then we will make it to the desired width. This may move the pricing to the next cut width category. If there is any question please check with your customer service specialist.

27. Q: How do I determine my curtain height?

A: Measure from the track to the floor. Typically curtains hang 12-15” off the floor. Deduct this floor clearance from the track to floor measurement and that is the finished curtain height.

28. Q: Does the healthcare industry have a recommended or required distance from the bottom of a cubicle curtain to the floor?

A: Yes. 8 to 12 inches from the floor to allow for environmental services for sanitize without their equipment being in contact with the privacy curtains.

Did not find what you are looking for ?
Please contact us at 305-556-8700 or click “Contact Us” button below to chat/send email.
One of our customer care associates will be available help you between the hours of 8-5 eastern standard time.
Thank you for visiting our site.
