Suspended Curtain Track System
Suspended Curtain Track Systems
Our suspended curtain track systems are available for purchase as individual components or complete kits. Each kit includes approximately 2.5 carriers per linear foot, one support assembly every 48 inches, and all necessary accessories such as end caps, splices, or pull-outs. Each support assembly includes a ceiling bracket, support tubing cut to your specified length, and a socket. We also offer 90-degree and 45-degree bends that can be combined with straight suspended curtain rails to create a variety of configurations for your suspended cubicle curtain track system.
Suspended Curtain Rail Solutions
Our suspended curtain rail solutions are ideal for healthcare and commercial environments. The images below demonstrate the suspended curtain track system during installation and after completion. These systems are designed to provide reliable support, smooth curtain operation, and adaptable configurations, making them a practical choice for a wide range of facility requirements.
Suspended Track Assembly
Suspended Track Actual Installation at Site
Why are Spool Carriers Better?
Standard Color
Layout configurations for order or final measurements
Suspended Cubicle Curtains Track Featuring Deluxe Spool Carriers
Suspended Hospital Curtains Track Featuring Economy Spool Carriers
Suspended Privacy Curtain Track Featuring Wheel Spool Carriers
Suspended Track Installation Instruction
Suspended Track Mounting Details with Deluxe Spool Carrier
Suspended Track Mounting Details with Economy Spool Carrier
Suspended Track Mounting Details with Wheel Carrier
Cube Care Tie Back Installation Instructions
Material Safety Datasheet for Cube Care Classic Track
Our suspended track systems comes with deluxe spool carriers as a standard however you are free to select from the following:
Economy Carrier White Economy Plastic Spool Carriers. Self-Lubricating.
Wheel Carrier with Metal Chain Virgin nylon bodies. Steel Bead Chain and Aluminum Hooks.
Wheel Carrier Wheel Carrier with Metal Hook.
Spool Carrier Deluxe Universal Spool type carriers with metal chain and hook. Self-Lubricating.
Extended Deluxe Carrier Extended Deluxe Spool Carrier with 16′ drop metal chain and hook. Allows you to drop your curtain up to an additional 16′ below the track.
Cube Care Classic Track – Straight Cube Care Architectural Track with Clear Anodized finishing.( straight track )
Cube Care Classic Track – 90 degree bend Heavy Duty Anodized Aluminum Track. 90 degree bend, 2’x2′ or 3’x3′.
Cube Care Classic Track – 45 degree bend Heavy Duty Anodized Aluminum Track. 45 degree bend, 2’x2′ or 3’x3′.

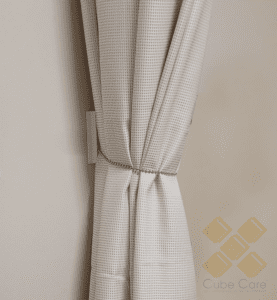

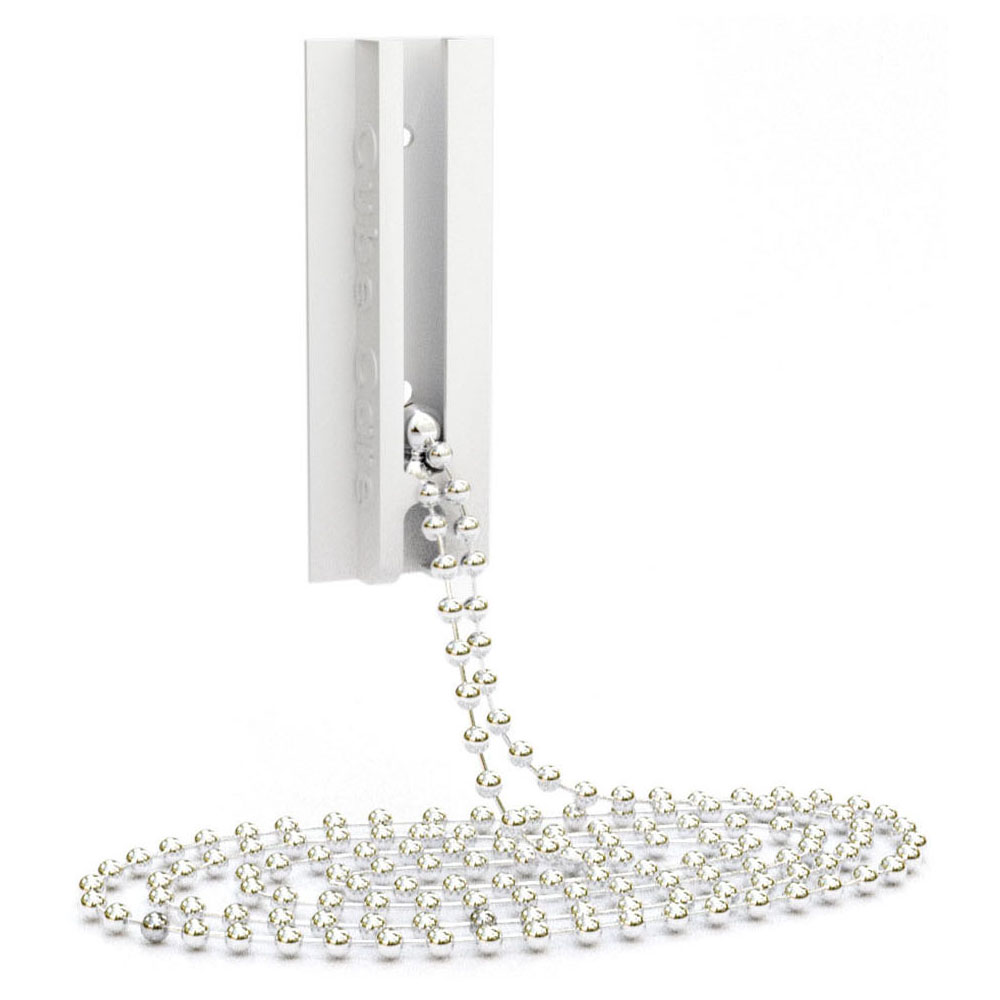

Cube Care Curtain Tie Back Holds the curtain back when not in use with a 48” inch Nickel Plated Chain. Have the choice to mount by adhesive or screw.
Classic Splice Aluminum Splice provides a seamless joint when joining two pieces of cubicle curtain track. For use with Cube Care Classic Track.
Classic Pullout Aluminum Pull-out piece allows you to add carriers in, then it is put it back in place to ensure that carriers do not fall out.
Classic End Cap Aluminum End caps create a finished end for Cube Care Classic Track.
Spacers Spacers used to adjust curtain tracks. Can sit on top of each other to increase adjustment in.
Wall Mount Bracket Wall Mount Bracket made from a heavy duty aluminum for use with our Suspended Track system.
Suspended Track Socket Aluminum Socket is used to connect cubicle curtain track to support tubing in our Suspended Track System. Support assembly (Support Tubing, Socket, and Ceiling Bracket) is recommended every 48′ along the length of track.
Ceiling Bracket Ceiling Bracket made of sturdy aluminum is used to connect support tubing to the ceiling in our Suspended Track System. Support assembly (Support Tubing, Socket, and Ceiling Bracket) is recommended every 48′ along the length of track.
Support Tubing – Stock Length Aluminum Support Tubing is used to extend the distance from the ceiling to cubicle curtain track by specific length with our Suspended Track System. Must be used with our Socket and Ceiling Brackets, recommended every 48′ along the length of track.
Questions are good answers are BETTER !
1. Q: How can I order track if I’m not sure of exactly what parts I need?
A: If you know the length of track that you need you can order online by selecting one of our TRACK KITS. Once we receive your order we will contact you to verify the track configuration and if your order requires any angles. We will calculate how many end caps, pull outs, splices, and carriers you need!
2. Q:How many carriers will I receive with the track kit?
A:The track kit comes with 2.5 carriers per linear foot.
3. Q: What type of carriers would you recommend for our track?
A: We recommend spool carriers for several reasons:
• Wheel carriers have moving parts that can fall or break off. Spool Carriers do not have any moving parts.
• Wheel carriers ride inside the track, so any debris caught inside the track will cause them to get stuck or not ride smoothly. If any screws are loose or not completely fastened they will also get stuck at this point. Spool carriers ride only in the upper part of the track with the body hanging.
• Spool carriers do not have an axle, so they are not as affected by the bends in most track configurations.
4. Q: Does the track kit come with everything I need?
A: Yes. Your track kit will come with all the accessories you need. The only additional items you need to provide are the appropriate screws to attach the track to your mounting surface. You can refer to our “Recommended Installation Details” sheet in the Doc Library for this information.
5. Q: Can I buy track without the accessories?
A: Yes, Cube Care Classic Track can also be purchased by itself in straight pieces of 6 or 8 feet, 90 degree angles, or 45 degree angles. (Product No. CCT-XX)
6. Q: What is the bending radius in your track angles?
A: Our track includes 12″ radius bends.
7. Q: What configurations are available with your Classic Track?
A: Classic track is available in straight pieces as well as 90 degree and 45 degree bends. Refer to the “Standard Track Layouts” in the Doc Library for various track configurations that can be built with our Classic Track.
8. Q: What are the dimensions of your Cube Care Classic Track?
A: Classic track is 1-3/8″ wide x ¾” in depth. You can refer to the Doc Library for Shop Drawings of our tracks and carriers.
9. Q: What is the difference between Classic Track and the other types of tracks?/
A: Please see our track comparison chart for an overview of what each track is best for, as well as what carriers can be used on each track.
10. Q: How long will it be before my order ships?
A: Cube Care Classic track is generally available to ship within 3 business days. For Track Kits allow 1 week while your track is prepared to your measurements. Please allow time for transit. All orders are shipped out via FedEx Ground.
